產品中心

角接觸球軸承
角接觸球軸承

英制等截面薄壁角接觸球軸承

  • 英制等截面薄壁角接觸球軸承，A型角接觸球軸承與C型軸承不同之處在于A型軸承有足夠的徑向游隙，能形成足夠的接觸角來承受軸向載荷。

bearing@hyzcgroup.com

18837917076

  • 產品詳情

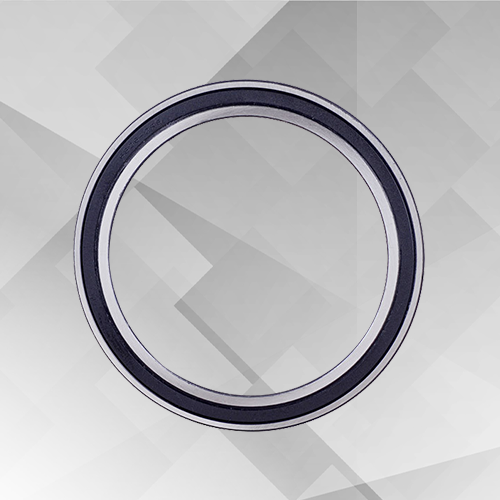

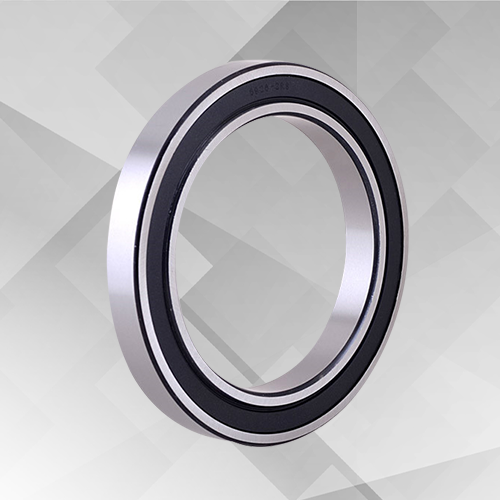

英制等截面薄壁角接觸球軸承

A型角接觸球軸承與C型軸承不同之處在于A型軸承有足夠的徑向游隙，能形成足夠的接觸角來承受軸向載荷。由于具有單向載荷能力，該軸承需要與其它軸承對稱配對安裝，以設定并保證接觸角，同時在受到交變的軸向載荷時使其軸向運動最小。


HAAA系列
軸承型號主要尺寸（mm）基本額定載荷（KN）

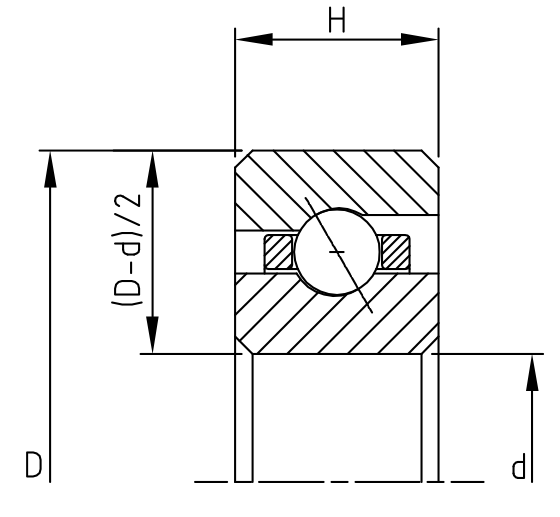

dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAAA1025.434.9254.7631.510.864.312.00
HAAA1538.147.6254.7632.141.066.142.49
HAAA1744.4553.9754.7632.361.126.762.67




HAA系列
軸承型號 主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAA2050.863.56.353.511.8010.144.27
HAA2563.576.26.354.272.0412.374.89
HAA3076.288.96.355.072.2614.635.47
HAA3588.9101.66.355.832.4616.866.01
HAA40101.6114.36.356.632.6519.136.54
HAA42107.95120.656.357.032.7420.246.81
HAA45114.31276.357.382.8321.407.03
HAA47120.65133.356.357.782.9222.517.30
HAA50127139.76.358.183.0123.627.52
HAA55139.7152.46.358.993.1825.898.01
HAA60152.4165.16.359.743.3528.118.45
HAA65165.1177.86.3510.543.5130.388.90
HAA70177.8190.56.3511.303.6632.659.34
HAA75190.5203.26.3512.103.8134.879.74
HAA80203.2215.96.3512.863.9637.1410.14
HAA90228.6241.36.3514.414.2441.6410.99
HAA100254266.76.35159.704.7746.1311.74
HAA110279.4292.16.35175.265.0250.6212.50




HAB系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAB2050.866.6757.9384.852.6714.016.14
HAB2563.579.3757.9385.963.0017.177.07
HAB3076.292.0757.9386.893.2619.887.78
HAB3588.9104.7757.9387.963.5623.048.59
HAB40101.6117.4757.9389.073.8526.209.34
HAB42107.95123.8257.9389.563.9627.589.65
HAB45114.3130.1757.93810.014.0828.919.96
HAB47120.65136.5257.93810.634.2330.7410.41
HAB50127142.8757.93811.124.3432.0710.72
HAB55139.7155.5757.93812.194.6035.2311.39
HAB60152.4168.2757.93813.304.8438.3912.05
HAB65165.1180.9757.93814.235.0441.1012.63
HAB70177.8193.6757.93815.355.2744.3013.26
HAB75190.5206.3757.93816.465.4947.4613.88
HAB80203.2219.0757.93817.535.7150.6214.50
HAB90228.6244.4757.93819.576.0956.4915.61
HAB100254269.8757.93821.756.5062.8116.73
HAB110279.4295.2757.93823.806.8568.6817.79
HAB120304.8320.6757.93825.987.2275.0018.86
HAB140355.6371.4757.93830.077.8686.7420.77
HAB160406.4422.2757.93834.308.4898.9722.69
HAB180457.2473.0757.93838.529.07111.1624.51
HAB200508523.8757.93842.759.62123.3526.24




HAC系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAC40101.6120.659.52511.345.1332.7412.32
HAC42107.951279.52512.055.3134.7912.81
HAC45114.3133.359.52512.725.4936.7913.30
HAC47120.65139.79.52513.435.6738.7913.79
HAC50127146.059.52514.155.8440.7914.23
HAC55139.7158.759.52515.306.1144.1314.99
HAC60152.4171.459.52516.686.4448.1315.92
HAC65165.1184.159.52518.066.7652.1316.77
HAC70177.8196.859.52519.227.0155.4717.48
HAC75190.5209.559.52520.607.3059.5218.33
HAC80203.2222.259.52522.027.6063.5219.13
HAC90228.6247.659.52524.558.1070.8620.60
HAC100254273.059.52527.318.6478.8722.11
HAC110279.4298.459.52529.899.1186.2523.49
HAC120304.8323.859.52532.439.5593.5924.78
HAC140355.6374.659.52537.7710.44108.9827.45
HAC160406.4425.459.52543.0611.27124.3329.94
HAC180457.2476.259.52548.4012.04139.7232.38
HAC200508527.059.52553.5112.74154.4434.61
HAC250635654.059.52566.2814.38192.5240.08
HAC300762781.059.52579.8915.84230.6445.19




HAD系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAD40101.612712.715.798.0945.6418.95
HAD42107.95133.3512.716.688.3448.1719.66
HAD45114.3139.712.717.578.5950.7120.33
HAD47120.65146.0512.718.468.8353.2521.00
HAD50127152.412.719.319.0755.7821.66
HAD55139.7165.112.721.089.5460.8522.95
HAD60152.4177.812.722.8210.0065.9224.20
HAD65165.1190.512.724.6010.4470.9925.44
HAD70177.8203.212.726.3310.8676.0626.64
HAD75190.5215.912.728.1111.2881.1427.80
HAD80203.2228.612.729.8511.6986.2128.96
HAD90228.625412.733.3612.4796.3531.18
HAD100254279.412.736.8813.22106.4933.36
HAD110279.4304.812.740.3913.94116.6335.41
HAD120304.8330.212.743.9014.63126.7737.45
HAD140355.638112.750.9315.93147.0641.32
HAD160406.4431.812.757.9617.15167.3445.06
HAD180457.2482.612.764.9918.30187.6348.62
HAD200508533.412.772.0219.38207.9152.09
HAD210533.4558.812.775.5419.89218.0553.76
HAD250635660.412.789.5921.83258.6260.23
HAD300762787.412.7107.1624.01309.3367.88




HAF系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAF40101.6139.719.0528.2516.6281.5837.45
HAF42107.95146.0519.0529.3616.9384.7438.39
HAF45114.3152.419.0531.5417.6491.0140.26
HAF47120.65158.7519.0532.6117.9494.1241.19
HAF50127165.119.0533.6718.2497.2842.08
HAF55139.7177.819.0536.9619.21106.6744.75
HAF60152.4190.519.0540.2120.15116.1047.37
HAF65165.1203.219.0543.4621.06125.5349.91
HAF70177.8215.919.0546.7521.94134.9152.36
HAF75190.5228.619.0548.9322.47141.1953.96
HAF80203.2241.319.0552.1823.32150.6256.36
HAF90228.6266.719.0558.6724.95169.4360.94
HAF100254292.119.0564.1426.20185.1364.63
HAF110279.4317.519.0570.6427.70203.9568.95
HAF120304.8342.919.0576.0628.86219.6572.46
HAF140355.6393.719.0588.0331.33254.1779.85
HAF160406.4444.519.05100.0033.64288.6586.92
HAF180457.2495.319.05113.0336.04326.3294.35
HAF200508546.119.05125.0038.09360.84100.89
HAF250635673.119.05154.3542.64445.71116.10
HAF300762800.119.05184.7846.85533.34130.91
HAF350889927.119.05215.2050.63621.42144.92
HAF40010161054.119.05245.6354.03709.05158.27




HAG系列
軸承型號主要尺寸（mm）基本額定載荷（KN）
dDH徑向靜載荷徑向動載荷軸向靜載荷軸向動載荷
HAG40101.6152.425.442.1727.94121.7060.63
HAG42107.95158.7525.444.2628.64127.8062.68
HAG45114.3165.125.446.3929.19133.8964.63
HAG47120.65171.4525.448.4930.00139.9466.59
HAG50127177.825.450.5830.68146.0468.50
HAG55139.7190.525.454.8031.99158.2272.24
HAG60152.4203.225.459.0333.27170.3775.89
HAG65165.1215.925.463.2534.52182.5679.49
HAG70177.8228.625.467.4435.74194.7482.96
HAG75190.5241.325.471.6636.93206.8986.38
HAG80203.225425.475.8938.10219.0789.77
HAG90228.6279.425.484.3440.36243.4196.26
HAG100254304.825.492.7542.53267.74102.58
HAG110279.4330.225.4101.2044.60292.07108.71
HAG120304.8355.625.4109.6046.62316.45114.68
HAG140355.6406.425.4126.4650.43365.11126.15
HAG160406.4457.225.4143.3254.01413.77137.14
HAG180457.250825.4160.2257.37462.62147.68
HAG200508558.825.4177.0860.55511.10157.87
HAG220558.8609.625.4193.9363.57559.84167.75
HAG250635685.825.4219.2167.79632.98182.02
HAG300762812.825.4261.3874.23754.42204.71
HAG350889939.825.4303.5579.99876.30226.15
HAG40010161066.825.4345.7285.20998.18246.61
